About the product

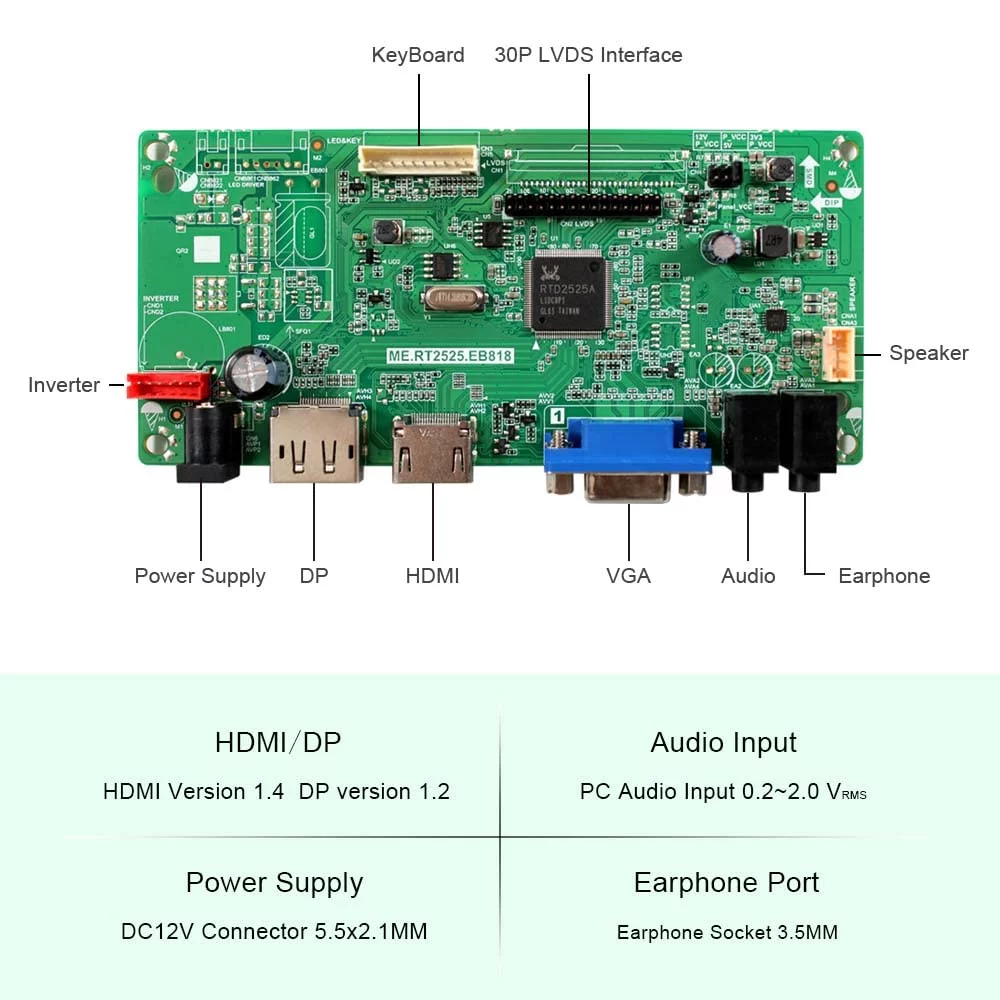

- LCD driver board work for 7" 10.1 inch 1280x800 40pin WLED backlight lvds LCD panel.
- Video input: HD-MI VGA DP,Audio Output: Speaker Connector ( 8ohm 2W 4Pin PH2.0 ).Please use in insulated environment.
- Input Power Supply: 12V DC more than 2A ,Port size :5.5x2.1mm, pls prepare power adapter by yourself.
- Compatible Screen models: N070ICG-LD1/LD4(40Pin IPEX connector) B101EW05 LP101WX1 HSD101PWW1 N101ICG-L21 PO101WX01

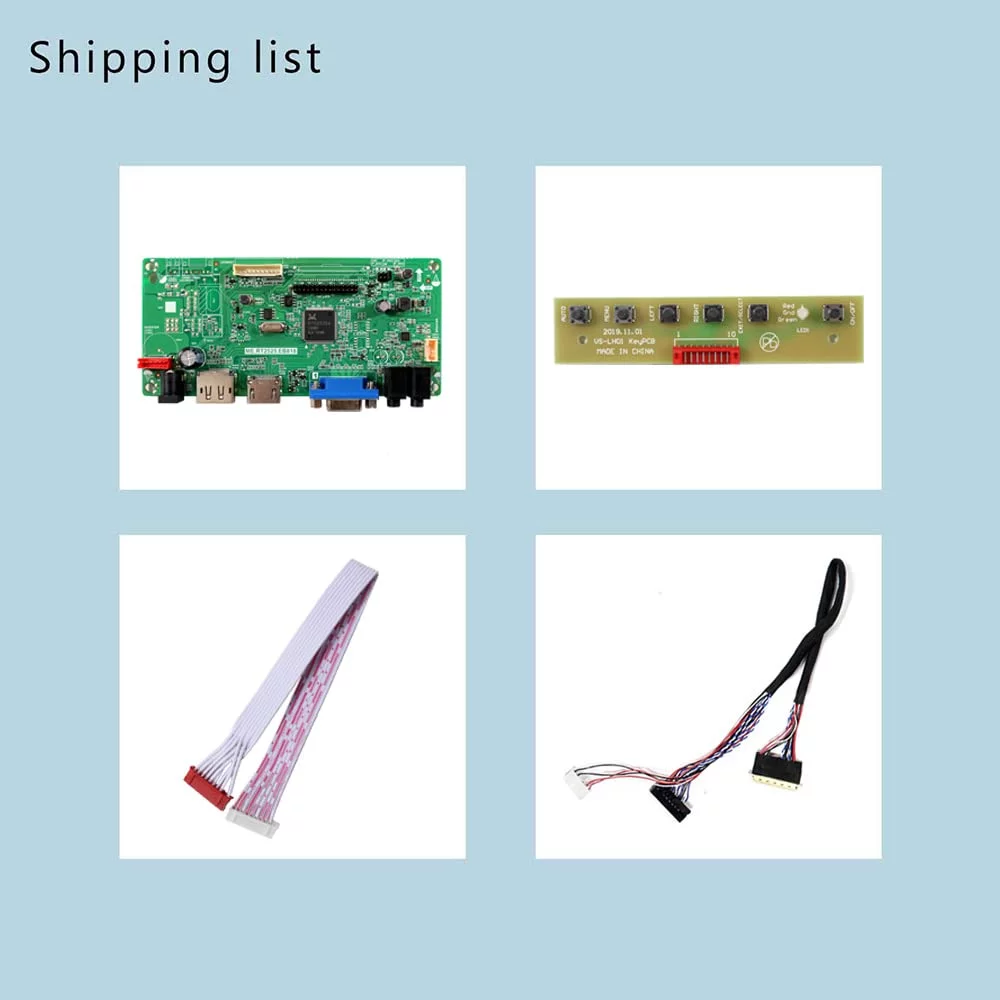

- Packing list:1 HD DP VGA LCD Controller Board ME.RT2525.EB818，1 40Pin Signal Cable ，1 Keyboard With Cable
